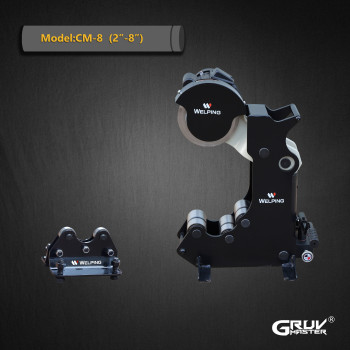

Electric Hydraulic Pipe Cutting Machine for Steel Pipe 2"-8" (CM-8)
- group name
- 2"-8" Pipe Cutting Machine
- Min Order
- 1 piece
- brand name
- Gruvmaster & Welping
- model
- CM-8
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Fri, 04 Apr 2025 04:44:57 GMT
Paramtents
Grooving Capacity 1/2-8inch
Power Supply 700W
Output Speed 30RPM
Max Wall Thickness: 8mm
Packging & Delivery
-
Min Order1 piece
Briefing
A precision cutting machine for creating grooves in various materials.
Detailed
Steel Pipe Roll Cutting Machine Vedio
Features of Electric Hydraulic Pipe Cutting Machine
● Model CM-8 Electric Hydraulic Pipe Cutting Machine is designed to cut steel pipes and stainless steel from 2"-8" (DN50~DN200) .
● It can cut a wide range of pipes, including steel pipes, stainless steel pipes, PE pipes, making it suitable for diverse industrial applications.
● Electric hydraulic systems provide high accuracy in cutting, ensuring clean and precise cuts every time. This is crucial for industries where accuracy is paramount.
● Constructed with high-quality materials and components, electric hydraulic pipe cutting machines are robust and durable, capable of withstanding heavy-duty usage in industrial environments.
● The electric pipe cutting machine operates through a cold cutting process, ensuring that no sparks are generated during the cutting of steel pipes. This characteristic is particularly advantageous in environments where the presence of sparks could pose safety hazards, such as in oil and gas facilities or areas with flammable materials.
● Cold cutting not only eliminates the risk of fire but also helps maintain the integrity of the material being cut by avoiding heat-affected zones and preserving the structural properties of the steel. As a result, electric pipe cutting machines provide a safe and efficient solution for industries requiring precise and spark-free cutting of steel pipes.
Pipe Cutting Machine Parameter
Mode | CM-8 |
||
|
Suitable materials
|
Carbon Steel,SS
|
||
|
Fabrication Capacity
|
2''~8''(DN50~DN200)
|
||
|
Power supple
|
220V/110V
|
||
|
Frequency
|
50HZ/60HZ
|
||
Max wall thickness | 8mm | ||
Motor power | 700W | ||
Output speed | 30RPM | ||
Packing gross weight | 80kgs | ||
Packing size | 67*47*75cm |
Standard Pards of Pipe Cutter
Item Number | Description | Net weight | |||||||||
998030 | Pipe stand for 2''-8''(¢60~¢219) | 4kg | |||||||||
912019 | Cutting blade | 1.25kg |
Ordering Information
Catalog Number | Phase | Power | |||
900070 | Single | 700W,220V,50/60HZ | |||
900071 | Single | 700W,110V,50/60HZ |
Resources
Details
Wide Application
It can cut a wide range of pipes, including steel pipes, stainless steel pipes, PE pipes, making it suitable for diverse industrial applications.
Casting part
· Reinforced cast iron housing for hydraulicpump, roller sets, pipe stabilizer
· Support color customization
· Balanced structure withstands tough jobs
Hydraulic Pump
· High quality seal parts ensure long-termfield usage without leaking
· Fine-machined cylinder with accurate sizes
· Proper-hardened piston rod of long-life
· Built-in groove depth adjusting rod
Blade Part
· Made of high-strength materials
· Support accessory ordering
· Long lifespan and easy replacement
Roller part
· Supports placing 2-8-inch fittings
· High-strength,solid and deformation-resistan
· Smooth rolling without lagging
Pipe stand
· Supports placing 2-8-inch fittings.
· The height can be adjusted to fit differentpipes by adjusting the bottom screws
Pipe Cutting Machine Comparison
