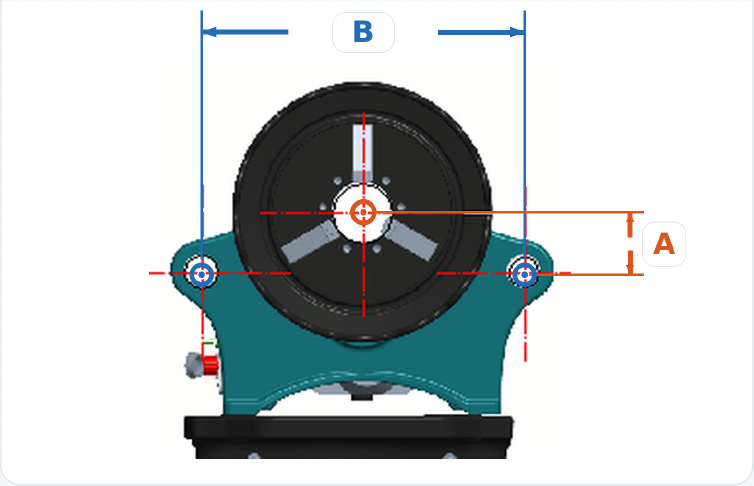

01 FRONT VIEW · A / B
Search This Supplers Products:Roll GrooverPipe Cut Off MachineGroove Cutting MachineHole Cutting MachineGrooving MachinePipe Groover
- Home
- About us
- Products
- ROLL GROOVERS
- Roll Grooving Cutting Machine
- Pipe Fitting Grooving Machine
- Pipe Cutting Machine
- Pipe Hole Cutter
- Pipe Fitting Reshaping machine
- Pipe Jacks and Stands
- Hinged Pipe Cutter
- Pipe Beveling Tool
- Hydraulic Roll Grooving
- Manual Roll Grooving
- Automatic Roll Grooving
- Groove Cutting Machine
- Pipe Fitting Roll Grooving
- Fire Protection Pipe Hanger
- Faqs
- News
- Certificate
- Contact us
Manual Hydraulic Roll Grooving Machine 2 Inch to 12 Inch (RG-H2X)
- group name
- Manual Roll Grooving
- Min Order
- 1 piece
- brand name
- Gruvmaster & Welping
- model
- RG-H2X
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Mon, 19 Oct 2026 14:55:12 GMT
Paramtents
Fabrication Capacity 2"-12"(DN50-DN300) Steel Pipe
Max Wall Thickness 10mm
Packing Size 45*20*65cm
Gross Weight 75KG
Packging & Delivery
- 45cm x20cm x65cm
-
Min Order1 piece
Briefing
RG-H2X manual roll grooving machine for 2 -12 steel pipe. Capable to adjust the machine height as needed on construction sites
Detailed
Pipe Roll Grooving Machine Video
Features of Manual Hydraulic Roll Groover Machine
● Model RG-H2X Manual Hydraulic Roll Grooving Assembly is designed to groove steel pipes by mounted 300 powerdrive
● It is heavy duty for grooving 2" to 12" steel pipe
● Compact design and rugged structure enables unit for mass fabrication duty on jobs
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
Pipe Roll Grooving Machine Parameter
Model: | RG-H2X |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 2"-12" SCH10/40 |
Max wall thickness: | 10mm |
Packing gross weight: | 75kgs |
Packing size: | 45*42*65cm |
Standard Parts of RG-H1X Roll Groover
Item Number | Description | Net weight | ||||
911022 | Drive roller 2"~3" (Φ60~Φ89) | 1.30kg | ||||
911021 | Drive roller 3 1/2"~6" (Φ101~Φ168) | 1.30kg | ||||
911020 | Drive roller 8"-12" (Φ219-Φ325) | 1.40kg | ||||
912010 | Groove roller 2"~3" (Φ60~Φ89) | 0.45kg | ||||
912009 | Groove roller 3 1/2"~6" (Φ101~Φ168) | 0.45kg | ||||
912008 | Groove roller 8"-12" (Φ219-Φ325) | 0.45kg | ||||
911018 | Drive bar adapter | 2.30kg | ||||
913006 | Support Bench | 2.20kg | ||||
Resources of RG-H2X Roll Grooving Machine
Roll Grooving Machine Configuration
Hydraulic pump
High-quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
The proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
Adapter plate
Adapter plate to fit on threading machine
Work with 2",3",4" pipe threading machine
Groove Roller
one set 2"~3" (Φ60~Φ89)
one set 3 1/2"~6" (Φ101~Φ168)
one set 8"-12" (Φ219-Φ325)
Drive roller
one set 2"~3" (Φ60~Φ89)
one set 3 1/2"~6" (Φ101~Φ168)
one set 8"-12" (Φ219-Φ325)
H1X and H2X pipe grooving attachment feature a detachable mounting plate.
The mounting plate is precision laser-cut to accommodate different machine sizes or model combinations.
It is compatible with various threading machines or power drives, including 300-type drive units and other well-known brands.

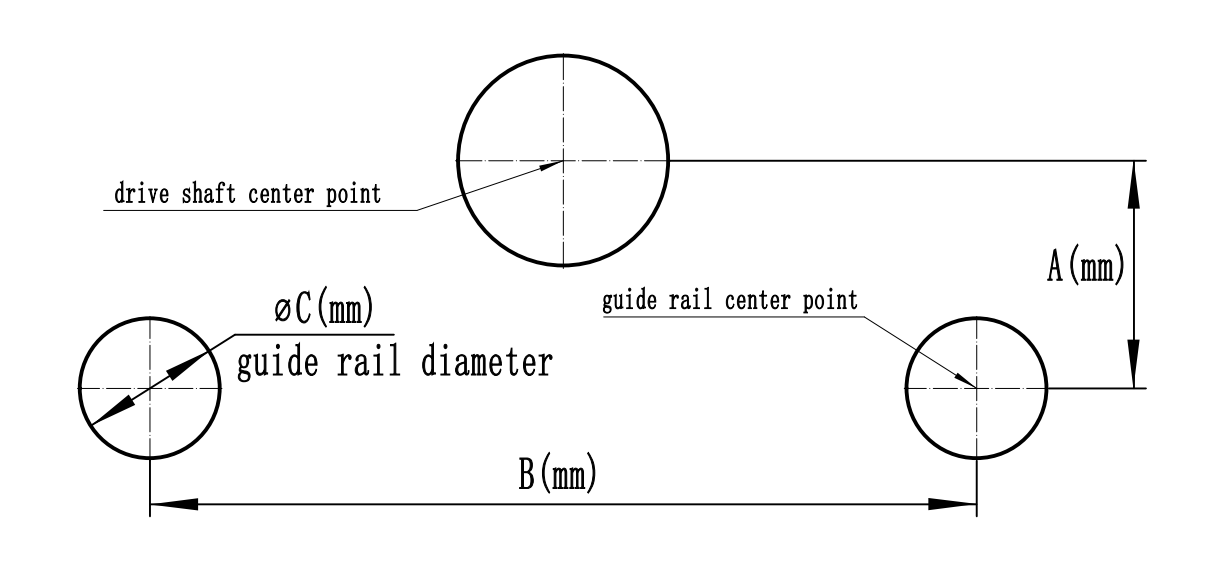

Mounting Plate & Drive Alignment Diagram
H1X and H2X pipe grooving attachment feature a detachable mounting plate.
The mounting plate is precision laser-cut to accommodate different machine sizes or model combinations.
It is compatible with various threading machines or power drives, including 300-type drive units and other well-known brands.
Mounting Plate Measurement Guide
Different drive machines require different mounting plate dimensions. Measure A, B and C as shown below and record all values in millimeters before ordering.
02 SIDE VIEW · C

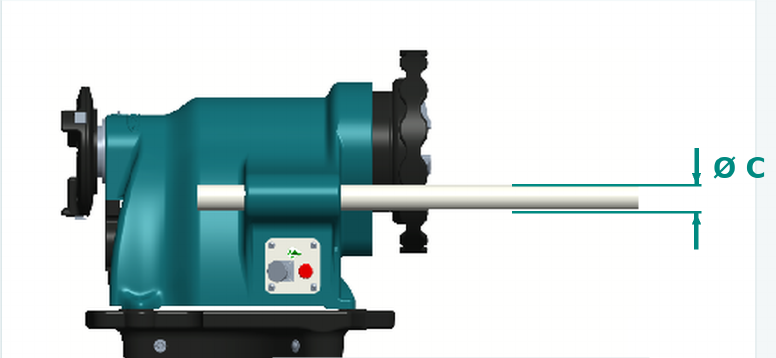

Guide rod cross-sectionMeasure the outside diameter of the guide rod.
Ø C
Vertical center distance
Spindle center to guide rod center, measured vertically.
Horizontal center distance
Between the centers of the two guide rods, measured horizontally.
Guide rod diameter
Measure the outside diameter of the guide rod.
IMPORTANT: For A and B, measure center-to-center, not from edges or machine housing.
MEASUREMENTS REQUIRED BEFORE ORDERING
Record all three dimensions in millimeters and provide them with your inquiry or order.
AVertical center distanceRecord in mm
BHorizontal center distanceRecord in mm
CGuide rod diameterRecord in mm
Please measure and provide dimensions A, B and C before ordering to ensure the mounting plate fits your machine correctly.
