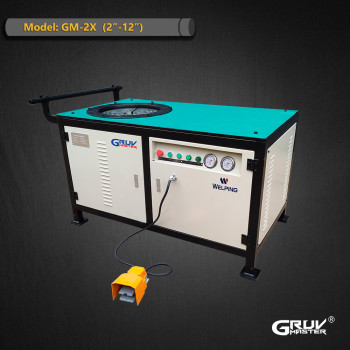

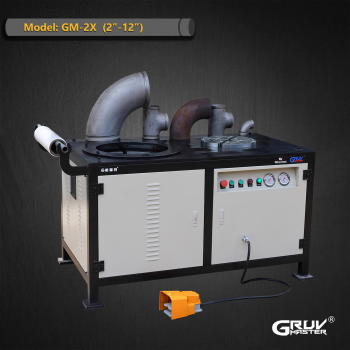

Hydraulic Steel Pipe and Fitting Shaping Machine for 2" to 12"(GM-2X)
- group name
- Pipe Fitting Reshaping machine
- Min Order
- 1 piece
- brand name
- Gruvmaster & Welping
- model
- GM-2X
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Fri, 04 Apr 2025 04:49:04 GMT
Paramtents
Fabrication Capacity 2"-12"(DN25-DN200)SCH10/40 Steel Pipe
Max Wall Thickness 10mm
Output Speed 23RPM
Power Supply 2200W
Voltage 380V,50HZ, Three Phase
Packging & Delivery
- 170cm x94cm x120cm
-
Min Order1 piece
Briefing
The pipe fitting reshaping machine, is a specialized device used to correct deformities in pipes or pipe fittings. It ensures that pipes meet the required shape, alignment, and dimensional standards for installation and use.
Detailed
Pipe Fitting Reshaping Machine
Features of Electric Hydraulic Pipe Fitting Reshaping Machine
● The pipe fitting reshaping machine, also known as a pipe straightening or alignment machine, is a specialized device used to correct deformities in pipes or pipe fittings. It ensures that pipes meet the required shape, alignment, and dimensional standards for installation and use.
Functions of the Pipe Reshaping Machine:
● Correcting Deformities: Repairs bent, distorted, or oval-shaped pipes, restoring them to their original round or specified shape.
● Improving Dimensional Accuracy: Ensures that pipes and fittings meet precise dimensional tolerances, essential for secure and leak-proof connections.
● Alignment: Straightens pipes that may have warped during manufacturing, transportation, or handling, ensuring proper alignment for installation.
● Versatility: Can handle various pipe materials such as steel, stainless steel, making it suitable for different industries.
● Enhanced Performance: Improves the quality and reliability of pipes, reducing the likelihood of failure or leaks in piping systems.
● This machine is commonly used in manufacturing, plumbing, construction, and industrial applications where precision and quality in pipe shapes are critical.
Pipe Fitting Reshaping Machine Parameter
Model: | GM-2X |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 2"-12" Pipe SCH10/SCH40 |
Power supply: | 380V |
Frequency: | 50HZ |
Max wall thickness: | 10mm |
Motor power: | 2200W |
Output pressure: | 20ton |
Packing gross weight: | 760kgs |
Packing size: | 170*94*120cm |
Standard Parts of GM-2X Pipe Fitting Reshaping Machine
Item Number | Description | Net weight | ||||
998131 | Reforming Dies φ60.3mm | 0.25kg | ||||
998132 | Reforming Dies φ70mm | 0.35kg | ||||
998133 | Reforming Dies φ88.9mm | 0.50kg | ||||
998134 | Reforming Dies φ114.3mm | 0.60kg | ||||
998135 | Reforming Dies φ141.3mm | 0.70kg | ||||
998136 | Reforming Dies φ168.3mm | 0.80kg | ||||
998137 | Reforming Dies φ216.3mm | 1.00kg | ||||
998138 | Reforming Dies φ219.1mm | 1.20kg | ||||
998139 | Reforming Dies φ267.4mm | 1.50kg | ||||
998140 | Reforming Dies φ273mm | 1.60kg | ||||
998141 | Reforming Dies φ318.5mm | 1.80kg | ||||
998142 | Reforming Dies φ329.3mm | 2.00kg | ||||
998026 | Foot Switch | 1.50kg | ||||
Resources of GM-2X Pipe Fitting Reshaping Machine
Pipe Fitting Reshaping Machine Configuration
For 2-12inch
suitable for grooving processing of 2" ~ 12" elbows, equal tees, reducing tees, concentric and eccentric reducers etc. for grooved coupling installation
Unique hydraulic station
Unique hydraulic station and electrical operating system, ensure high-quality grooving capability and efficient work performance.
Grooved Fittings
The grooving machine processes pipes to enable seamless connections with fittings like elbows, tees, and reducers.
Reforming Dies
Reforming dies from 2inch to 12inch are available, and 1inch are for option
