HC-1X Electric 114mm Pipe Hole Cutting Machine Up To 4"

group name: Pipe Hole Cutter

Min Order: 1 piece

brand name: Gruvmaster & Welping

model: HC-1X

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union

update time: Sun, 06 Jul 2025 22:34:09 GMT

contact supplier

Paramtents

Cutting Capacity Up To 4" (114mm)
Pipe Mounting Capacity 1 1/4"-8"(32mm-200 mm)
Drill Chuck Capacity 1/16"-5/8"(2mm-16 mm)
Drill Chuck Speed 240RPM
Current Draw Rating 8 Amps @ 220-240V
Current Draw Rating 15 Amps @ 120V
Gross Weight 15kgs
Available Material Carbon Steel Pipes, PE Pipes

Packging & Delivery

37cm x33cm x34cm
Min Order1 piece

Briefing

Widely used in the fire protection industry

Detailed

Pipe Hole Cutting Machine Features

Features of Pipe Hole cutter

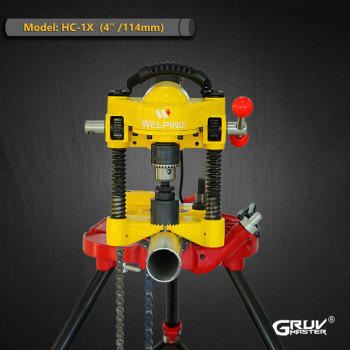

●The Model HC-1X Pipe Hole Cutter is designed to cut holes up to 4" into steel pipe.

The HC-1X has a 5/8" capacity drill chuck to accommodate all sizes of hole saws and hole saw arbors. An integral motor and gear-reduction optimize the performance of large-diameter hole saws.

●The two feed handles allow the operator to use the Pipe HoleCutter from either the left or right side. A rotating leveling vial in the base allows repeated holes to line up.

●Only 11" high, the compact design, allows the HC-1X to be used in tight quarters or above in-stalled pipe close to ceilings.

Pipe Roll Grooving Machine Parameter

Model:	HC-1X
Suitable Material:	Carbon Steel Pipes, PE Pipes
Cutting Capacity:	up to 4"(114mm)
Pipe Mounting Capacity:	1 1/4"- 8"(32mm-200 mm)
Drill Chuck Capacity:	1/16"- 5/8"(2mm-16 mm)
Drill Chuck Speed:	240RPM
Current Draw Rating:	8 Amps @ 220-240V
	15 Amps @ 120V
Packing gross weight:	15kgs
Packing size:	373334cm

Ordering Information

Catalog No.	Phase	Power
910010	Single	1800W,220V,50/60HZ
910011	Single	1800W,110V,50/60HZ

Pipe Hole Cutting Machine Configuration

High Efficiency

The pipe hole cutting machine can quickly complete the operation, significantly improve the working efficiency and save time.

Wide range of applications

It can be stuitable to many materials, such as steel pipe, aluminum pipe, PVC pipe, etc., with strong adaptability.

Easy to move and use

This hole cutter is portable, making it easy to use at different job sites.

It is an Indispensable tool for pipeline construction and maintenance

High precision

The machine comes with a leveling device and advanced positioning and cutting technology, which ensures the accuracy of the position and size of the opened holes and reduces material waste.

Resources of RG-1C Roll Grooving Machine

HC-1X Pipe Hole Cutting Machine Operating and MaintenanceInstructions Manual
