HC-2X 4 Inch Steel Pipe Hole Cutting Machine Tube Driller

group name: Pipe Hole Cutter

Min Order: 1 piece

brand name: Gruvmaster & Welping

model: HC-2X

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union

update time: Sun, 06 Jul 2025 23:12:27 GMT

contact supplier

Paramtents

Cutting Capacity Up To 4" (114mm)
Pipe Mounting Capacity 1 1/4"-8"(32mm-200 mm)
Drill Chuck Capacity 1/16"-5/8"(2mm-16 mm)
Drill Chuck Speed 110RPM
Current Draw Rating 8 Amps @ 220-240V
Current Draw Rating 15 Amps @ 120V
Gross Weight 21kgs
Available Material Carbon Steel Pipes, PE Pipes

Packging & Delivery

37cm x33cm x34cm
Min Order1 piece

Briefing

Widely used in the fire protection industry

Detailed

Pipe Hole Cutting Machine Features

Features of Pipe Hole cutter

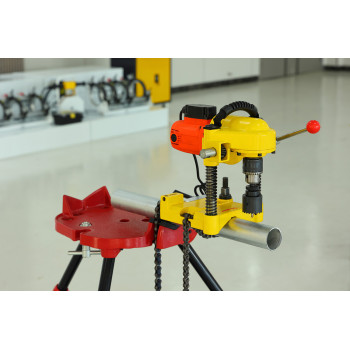

●The Model HC-2X Pipe Hole Cutter is designed to cut holes up to 4" into steel pipe.

●The HC-2X has a 5/8" capacity drill chuck to accommodate all sizes of hole saws and hole saw arbors..

●Equipped with a high-performance, low-noise gear reduction motor to offer high torque.

●The two feed handles allow the operator to use the Pipe Hole Cutter from either the left or right side. A rotating leveling vial in the base allows repeated holes to line up.

Pipe Roll Grooving Machine Parameter

Model:	HC-2X
Suitable Material:	Carbon Steel Pipes, PE Pipes
Cutting Capacity:	up to 4"(114mm)
Pipe Mounting Capacity:	1 1/4"- 8"(32mm-200 mm)
Drill Chuck Capacity:	1/16"- 5/8"(2mm-16 mm)
Drill Chuck Speed:	110RPM
Current Draw Rating:	8 Amps @ 220-240V
	15 Amps @ 120V
Packing gross weight:	21kgs
Packing size:	323263cm

Ordering Information

Catalog No.	Phase	Power
910020	Single	700W,220V,50/60HZ
910021	Single	700W,110V,50/60HZ

Pipe Hole Cutting Machine Configuration

High Efficiency

The pipe hole cutting machine can quickly complete the operation, significantly improve the working efficiency and save time.

Wide range of applications

It can be stuitable to many materials, such as steel pipe, aluminum pipe, PVC pipe, etc., with strong adaptability.

Easy to move and use

This hole cutter is portable, making it easy to use at different job sites.

It is an Indispensable tool for pipeline construction and maintenance

High precision

The machine comes with a leveling device and advanced positioning and cutting technology, which ensures the accuracy of the position and size of the opened holes and reduces material waste.
