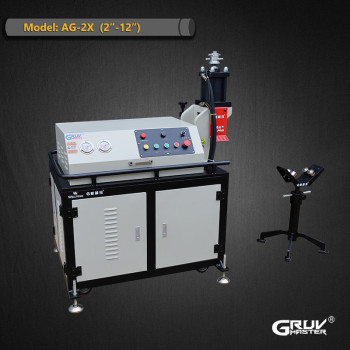

Semi-Automatically Pipe Hydraulic Roll Groover 2"-12" (AG-2X)

group name: Automatic Roll Grooving

Min Order: 1 piece

brand name: Gruvmaster & Welping

model: AG-2X

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union

update time: Thu, 20 Nov 2025 12:24:23 GMT

contact supplier

Paramtents

Fabrication Capacity 2"-12" SCH10/40
Max Wall Thickness 10mm
Output Speed 23RPM
Power Supply 750W
Packing Size 125*100*150cm
Gross Weight 820KG
Voltage 380V

Packging & Delivery

145cm x100cm x150cm
Min Order1 piece

Briefing

The fully-motorized, semi-automatic, electrohydraulic roll groover designed for 2"-12" steel pipes,(Optional) 2"~16"(DN50~DN400,Φ60~Φ426)

Detailed

Pipe Roll Grooving Machine Video

Features of Semi-Automatical Roll Groover Machine 2-12inch

● Built for heavy-duty grooving jobs, model AG-2X is ideal for high-volume grooving of large-diameter steel pipes in workshop and construction sites.

● Equipped with a high-power motor and high-strength gearbox, the machine is built for long-term, continuous operation.

● Heavy-duty groove rollers and drive rollers with interlocking structure ensures precise control of the pipe sealing surface length.

● Unique depth limiting device, the groove roller automatically resets after the groove depth is reached.

Note: the guide wheel can be optionally set to automatically

move back and forth for added convenience and speed

Pipe Roll Grooving Machine Parameter

Model:	AG-2X
Suitable materials:	Carbon Steel,SS Pipe
Fabrication Capacity:	2"-12" Pipe SCH10/SCH40
Power supply:	380V
Frequency:	50HZ
Max wall thickness:	10mm
Motor power:	750W
Output speed:	23RPM
Packing gross weight:	820kgs
Packing size:	145100150cm

Standard Parts of AG-2X Roll Groover

Item Number	Description	Net weight
911122	Drive roller 2"-3" (φ60-φ89)	1.30kg
911021	Drive roller 3 1/2"-6"(φ101-φ168)	1.30kg
911020	Drive roller 8"-12" (φ219-φ325)	1.70kg
912010	Groove roller 2"-3" (φ60-φ89)	0.90kg
912009	Groove roller 3 1/2"-6"(φ101-φ168)	0.80kg
912008	Groove roller 8"-12" (φ219-φ325)	0.70kg
998164	Pipe stand	12.0kg

Optional Parts of AG-2X Roll Groover

Item Number	Description	Net weight
911170	Drive roller 14"-16" (φ355-φ426)	1.70kg
912052	Groove roller 14"-16"(φ355-φ426)	1.70kg

Resources of AG-2X Roll Grooving Machine

AG-2X Semi-Automatic Roll Groover Catalog

Catalog of Steel Pipe Tools

Roll Grooving Machine Configuration

Groove Formation

Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.

Compatibility

Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.

Support color customization

Balanced structure withstands tough jobs

Semi-Automatic Operation

Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.

Adjustable Settings

Equipped with adjustable roller sets to accommodate different pipe specifications.

User friendly

Simple push-button operations ensures easy and efficient grooving operation experience.

Semi-Automatically

The fully-motorized, semi-automatic, electrohydraulic tool comes complete with safety guards

Pipe Stand

Pipe stand for 2-12inch pipes

Groove ruler

The ideal tool for quick and reliable groove inspection,supports brand customization

Pipe Roll Grooving Machine Comparasion
