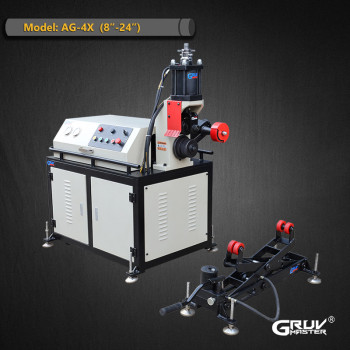

Semi-Automatically Pipe Hydraulic Roll Groover 8"-24" (AG-4X)
- group name
- Automatic Roll Grooving
- Min Order
- 1 piece
- brand name
- Gruvmaster & Welping
- model
- AG-4X
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 20 Nov 2025 12:24:49 GMT
Paramtents
Fabrication Capacity 8"-24"
Max Wall Thickness 13mm
Output Speed 23RPM
Power Supply 2200W, 3 phase
Packing Size 195*110*120cm
Gross Weight 1240KG
Packging & Delivery
- 195cm x110cm x120cm
-
Min Order1 piece
Briefing
The fully-motorized, semi-automatic, electrohydraulic roll groover designed for 8"-24" steel pipes
Detailed
Pipe Roll Grooving Machine Video
Features of Semi-Automatical Roll Groover Machine 8-24inch
● Built for heavy-duty grooving jobs, model AG-4X is ideal for high-volume grooving of large-diameter steel pipes in workshop and construction sites.
● Equipped with a high-power motor and high-strength gearbox, the machine is built for long-term, continuous operation.
● Heavy-duty groove rollers and drive rollers with interlocking structure ensures precise control of the pipe sealing surface length.
● Unique depth limiting device, the groove roller automatically resets after the groove depth is reached.
Note: the guide wheel can be optionally set to automatically
move back and forth for added convenience and speed
Pipe Roll Grooving Machine Parameter
Model: | AG-4X |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 8"-24" Pipe |
Power supply: | 380V |
Frequency: | 50HZ |
Max wall thickness: | 13mm |
Motor power: | 2200W |
Output speed: | 23RPM |
Packing gross weight: | 1240kgs |
Packing size: | 195*110*120cm |
Standard Parts of AG-4X Roll Groover
Item Number | Description | Net weight | ||||
911087 | Drive roller 8"-12" (φ219-φ325) | 3.50kg | ||||
911088 | Drive roller 14"-16"(φ355-φ426) | 3.50kg | ||||
911089 | Drive roller 18"-24" (φ457-φ630) | 3.50kg | ||||
912029 | Groove roller 8"-12" (φ219-φ325) | 1.40kg | ||||
912030 | Groove roller 14"-16"(φ355-φ426) | 1.40kg | ||||
912031 | Groove roller 18"-24" (φ457-φ630) | 1.40kg | ||||
998038 | Pipe stand | 33.0kg | ||||
Optional Parts of AG-4X Roll Groover
Item Number | Description | Net weight | ||||
911099 | AGS Drive roller 14"-24" (φ355-φ630) | 3.50kg | ||||
912034 | AGS Groove roller 14"-24"(φ355-φ630) | 2.00kg | ||||
Resources of AG-4X Roll Grooving Machine
Roll Grooving Machine Configuration
Groove Formation
Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.
Compatibility
Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.
Support color customization
Balanced structure withstands tough jobs
Semi-Automatic Operation
Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.
Adjustable Settings
Equipped with adjustable roller sets to accommodate different pipe specifications.

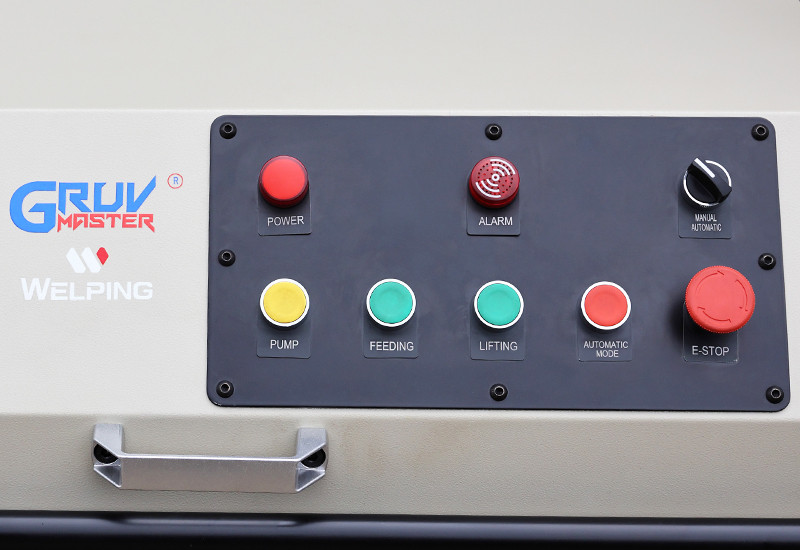

User friendly
Simple push-button operations ensures easy and efficient grooving operation experience.
Semi-Automatically
The fully-motorized, semi-automatic, electrohydraulic tool comes complete with safety guards
Pipe Stand
Pipe Stand for 8-24inch Pipes
Groove Tape
The ideal tool for quick and reliable groove inspection,supports brand customization
Pipe Roll Grooving Machine Comparasion
