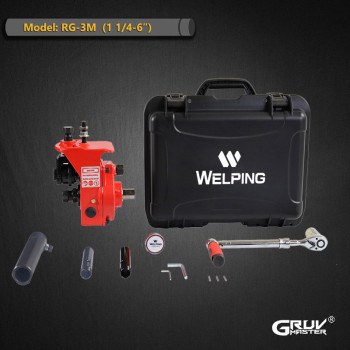

Manual Roll Grooving Machine Light Weight for 1 1/4 Inch to 6 Inch (RG-3M)
- group name
- Manual Roll Grooving
- Min Order
- 1 piece
- brand name
- Gruvmaster & Welping
- model
- RG-3M
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Sun, 06 Jul 2025 23:20:28 GMT
Paramtents
Fabrication Capacity 1 1/4"-6"(DN25-DN150) Steel Pipe
Max Wall Thickness 6mm
Operation radius 210mm / 8 ¼"
Packing Size 50*22*53cm
Gross Weight 12KG
Packging & Delivery
- 50cm x22cm x53cm
-
Min Order1 piece
Briefing
RG-3M manual roll grooving machine for 1 1/4-6 steel pipe. Capable to adjust the machine height as needed on construction sites
Detailed
Pipe Roll Grooving Machine Video
Features of Manual Roll Groover Machine
● Can be used manually or with a power drive. Ideal for on-site or flexible grooving tasks
● Featuring a compact design, the RG-3M is a versatile roll grooving tool that supports both manual operation and power drive through a threading machine. Suitable for both batch production and flexible on-site operations.
● Light-duty design for fire-fighting pipelines size range 1 1/4"~6"(DN32~DN150),SCH10 to SCH40.
●Compact design with a portable toolbox, allowing easy manual operation even in confined spaces
● Two-stage gear reduction for smooth, labor-saving operation
● Quick and easy swap shafts in 30 seconds.
Pipe Roll Grooving Machine Parameter
Model: | RG-3M |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 1 1/4"-4"SCH10/405"-6" SCH10/20 |
Max wall thickness: | 6mm |
Operation radius (mm): | 210mm |
Operation radius (In): | 8 ¼" |
Packing gross weight: | 22kgs |
Packing size: | 50*22*53cm |
Standard Parts of RG-3M Roll Groover
Item Number | Description | Net weight | ||||
911010 | Drive roller 1 ¼"~6" (Φ42~Φ168) | 0.70kg | ||||
912016 | Groove roller 1"~6" (Φ42~Φ168) | 0.30kg | ||||
Optional Parts of RG-3M Roll Groover
Item Number | Description | Net weight | ||||
911016 | Support arms (×2) for 300 | 1.40kg | ||||
911015 | Drive bar adaptor | 2.50kg | ||||
998034 | HDPE tool case | 2.70kg | ||||
998114 | Bracket set for horizontal pipe threading machine | 1.00kg | ||||
Resources of RG-3M Roll Grooving Machine
Roll Grooving Machine Configuration
Light-weight tool
Light-weight design for fire-fighting and industrial pipelines
High-quality seal parts ensure long-term field usage without leaking
HDPE Tool case (Optional)
Reinforced HDPE Tool case, Easy to carry and move
Waterproof and dustproof to protect tools from damage.
Groove Roller
one set 1 "-6"(φ33~φ168)
Drive roller
one set 1 1/4"-6"(φ42~φ168)
Compact design
Compact design with a portable toolbox, allowing easy manual operation even in confined spaces
Support arms (Optional)
Support arms (×2), work with RIDGID 300 power drive
Pipe Roll Grooving Machine Comparasion
