80-600 mm Electric ID Mounted Pipe Beveling Machine 1.6KW Cold Cutting Beveling Tool (WPE-1)

group name: ID Mounted Pipe Beveling Machine

Min Order: 1 piece

brand name: Gruvmaster & Welping

model: WPE-1

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union

update time: Thu, 18 Sep 2025 01:19:57 GMT

contact supplier

Paramtents

Fabrication Capacity 80-600 mm
Wall Thickness 20mm
Rotating Speed 16/14/12/10RPM
Power Supply 1600W
Drive Electric

Packging & Delivery

Min Order1 piece

Briefing

The pipe beveling machine is a specialized tool designed for internal clamping and precise beveling of pipe ends

Detailed

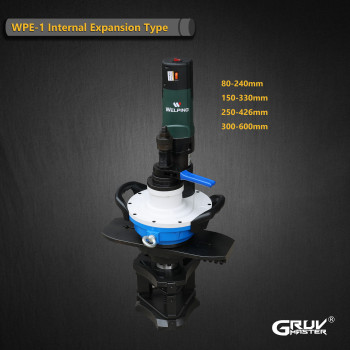

80-600mm ID Mounted Electric Pipe Beveling Machine

The internal expansion pipe beveling machine tightens the inner wall of the pipe and drives the cutter head to rotate after multistage deceleration by the planetary reducer to process the port groove of the pipe. For pipes of different materials, you only need to install tools of corresponding materials for safe and rapid processing. We can provide tools from different angles for groove. flat mouth and inner groove. lt is the best choice for processing small mouth diameter.

lt is widely used in pipeline installation engineering and emergency repair inpetroleum, chemical industry, natural gas, boiler, pharmaceutical, nuclear power, food and other industries

They are widely used in the fields of petroleum, chemical, natural gas, power supply construction, boiler and nuclear power, such as the project of west gas transporting to east china.

● Automatic positioning center, fast and convenient installation;

● Applicable to a wide range of pipe diameters, modular design, pipe inner wall and deep hole processing;

● Cold cutting without changing the pipe material;

● It is suitable for groove of stainless steel, carbon steel, alloy steel and other multi specification materials, u-type, single V type, double V type, j-type weld groove, chamfer and flat mouth, and groove processing of convex flange and plane flange after butt welding;

● Light weight, easy to carry

ID Mounted Electric Pipe Beveling Machine Parameter

Model	Suitbale Material	Capacity ID (mm)	Power Supply	Wall Thickness (mm)	Rotating Speed (rpm)
WPE-252-1	Carbon steel, SS	80-240	1.6KW, 220V	≤15	16RPM
WPE-352-1	Carbon steel, SS	150-330	1.6KW, 220V	≤15	14RPM
WPE-426-1	Carbon steel, SS	250-426	1.6KW, 220V	≤15	12RPM
WPE-630-1	Carbon steel, SS	300-600	1.6KW, 220V	≤15	10RPM

Packing Information

Model	Length(cm)	Width (cm)	Height(cm)	G.W (kg)	N.W (kg)
WPE-252-1	84	40	34	50	35
WPE-352-1	90	50	44	76	52
WPE-426-1	105	55	52	120	90
WPE-630-1	105	70	65	162	115

Standard Parts of WPE-1 Pipe beveler

Item Number	Description	Net weight
/	Tool box	2kg
/	0° cutting blade	0.30kg
/	30° cutting blade	0.40kg
/	37.5° cutting blade	0.40kg

Pipe Beveler Machine Configuration

Wide Application Range

Suitable for carbon steel, stainless steel, alloy steel, and other metal pipes, covering a wide range of pipe diameters and wall thicknesses.

Versatile Bevel Types

* 0-37 degree tool, supports various bevel angles and shapes, including straight, V, and J bevels, depending on welding requirements.

Internal Clamping Design

The machine clamps from the inside of the pipe using an expandable mandrel, ensuring strong stability and precise centering during operation.

Cutting tool

* 0°,30°,37.5°is standard tools

* Other degree is optional forms
