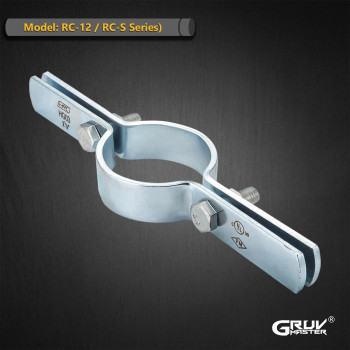

Steel Pipe Riser Clamp 3/4"–12" | Heavy Duty Pipe Support
- group name
- Fire Pipe Supports
- Min Order
- 1 piece
- brand name
- Gruvmaster & Welping
- model
- HG03
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Fri, 03 Apr 2026 17:56:30 GMT
Paramtents
Material Carbon steel
Size Range 3⁄4" through 12“
Application Steel Pipe Riser Support
Installation Type Bolted Clamp Connection
Max Temperature 650°F
Finish Electro-Galvanized
Packging & Delivery
-
Min Order1 piece
Briefing
The riser clamp is designed to support vertical steel pipes in fire protection and piping systems.
Made from carbon steel with corrosion-resistant coating, it provides reliable load-bearing performance across a wide size range from 3/4" to 12".
The clamp can be installed below a coupling or hub using bolted connections, ensuring stable pipe positioning and long-term durability.
Optional UL and FM certifications are available to meet project requirements.
Made from carbon steel with corrosion-resistant coating, it provides reliable load-bearing performance across a wide size range from 3/4" to 12".
The clamp can be installed below a coupling or hub using bolted connections, ensuring stable pipe positioning and long-term durability.
Optional UL and FM certifications are available to meet project requirements.
Detailed
Riser Clamp for Steel Pipe | Adjustable Pipe Support
（Size Range: 3/4"–12" | UL/FM Certification Available）
Product Overview
Riser clamps are used to support vertical steel pipes and carry the full weight of the piping system.
Designed for fire protection and mechanical piping applications, this clamp helps maintain stable positioning, prevents downward movement, and ensures reliable load transfer to the building structure.
Product Specifications
| Model: | HG03 |
| Product Name: | Riser Clamp |
| Material: | Carbon Steel |
| Finish: | Electro-Galvanized |
| Size Range: | 3/4" – 12" |
Application: | Vertical Steel Pipe Support |
Installation: | Bolted Below Coupling Hub or Welded Lugs |
Lug Configuration: | 2 Lugs (Up to 3") 4 Lugs (Up to 12") |
Max Temperature: | 650°F |
Certification: | UL Listed (Optional) FM Approved (Optional) |
Key Features
Reliable Load Support
Engineered to securely carry vertical pipe loads and maintain stable pipe positioning.
Corrosion-Resistant Finish
Electro-galvanized coating with optional hot-dip galvanizing for enhanced durability.
Wide Size Compatibility
Available from 3/4" to 12", suitable for various pipe sizes and system requirements.
Standards-Compliant Design
Manufactured in accordance with MSS standards, with optional UL/FM certification.
Selection Guide
· Select the clamp size according to the pipe outer diameter
· Verify that the load capacity meets project requirements
· Choose the appropriate lug configuration based on pipe size
· Select surface finish based on indoor or outdoor conditions
Typical Riser Clamp Installation
Standards & Certification
· MSS SP-69 / SP-58
· A-A-1192A (Type 8)
· UL Listed (Optional)
· FM Approved (Optional)
Technical Data
Dimensions and load capacity vary by pipe size. Refer to the table below for detailed specifications.
FAQ
Q: What is a riser clamp used for?
A: It is used to support vertical steel pipes and help prevent downward movement in piping systems.
Q: Where is the clamp installed?
A: It is typically installed below a pipe coupling, hub, or welded support point.
Q: Can riser clamps support full pipe load?
A: Yes, when properly installed, they are designed to carry the vertical load of the pipe.
Q: What finish is recommended for outdoor use?
A: Hot-dip galvanizing is recommended for improved corrosion resistance in outdoor environments.
Contact us for detailed specifications, pricing, and project support.
