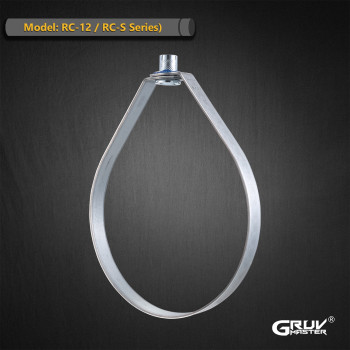

Swivel Ring Pipe Hanger 1/2"–8" | Adjustable Pipe Support
- group name
- Fire Protection Pipe Hanger
- Min Order
- 1 piece
- brand name
- Gruvmaster & Welping
- model
- LK01
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 09 Apr 2026 15:54:16 GMT
Paramtents
Material Carbon steel
Finish Plain / Zinc Plated
Application Pipe Suspension
Size Range 1/2" – 8" (15–200 mm)
Adjustment Type Vertical Adjustment via Swivel Nut
Connection Type Threaded Connection
Max Temperature 650°F (Plain), 450°F (Galvanized)
Certification UL Listed / FM Approved
Standard MSS SP-69 / SP-58
Packging & Delivery
-
Min Order1 piece
Briefing
The swivel ring hanger provides reliable suspension for stationary steel pipes.
Featuring an adjustable swivel design and durable steel construction, it is suitable for various piping systems.
Featuring an adjustable swivel design and durable steel construction, it is suitable for various piping systems.
Detailed
Swivel Ring Hanger for Steel Pipe | Adjustable Pipe Suspension
(Size Range: 1/2"–8" | UL/FM Certification Available)
Product Overview
The swivel ring hanger is designed to suspend stationary steel pipes or conduits in piping systems, helping maintain stable positioning and proper load distribution.
Made from carbon steel with corrosion-resistant finishes, it is suitable for both indoor and outdoor use. The hanger is typically installed with threaded rods to provide secure suspension for horizontal piping systems.
Product Specifications
| Model: | LK01 |
| Product Name: | Swivel Ring Hanger |
| Material: | Carbon Steel |
| Finish: | Zinc Plated (Hot-Dip Galvanized optional) |
| Size Range: | 1/2" – 8" |
Application: | Steel Pipe Suspension |
Installation: | Threaded Rod Suspension |
Max Temperature: | Plain: 343°C / 650°F Galvanized: 232°C / 450°F |
Approvals: | A-A-1192A (Type 10) WW-H-171-E (Type 10) ANSI/MSS SP-69 MSS SP-58 |
Certification: | UL Listed (Optional) / FM Approved (Optional) |
Key Features
Load-Bearing Support
Provides stable suspension for pipe loads, helping prevent movement in piping systems.
Adjustable Swivel Design
Allows vertical adjustment after installation for better alignment and positioning.
Corrosion Protection
Zinc-plated finish with optional hot-dip galvanizing for enhanced durability.
Wide Size Coverage
Available from 1/2" to 8", suitable for various piping applications.
Selection Guide
· Select the hanger size according to the pipe outer diameter
· Verify that the load capacity meets project requirements
· Choose the appropriate finish based on installation environment
· Ensure compatibility with threaded rod systems
Typical Riser Clamp Installation
Standards & Certification
· MSS SP-69 / SP-58
· A-A-1192A (Type 10)
· UL Listed (Optional)
· FM Approved (Optional)
Technical Data
Dimensions and load capacity vary by pipe size. Refer to the table below for detailed specifications.
FAQ
Q: What is a swivel ring hanger used for?
A: It is used to suspend steel pipes or conduits in piping systems.
Q: Where is the hanger installed?
A: It is installed using threaded rods for overhead pipe suspension.
Q: Can it support full pipe load?
A: Yes, when properly installed, it is designed to carry the vertical load of the pipe.
Q: What finish is recommended for outdoor use?
A: Hot-dip galvanizing is recommended for improved corrosion resistance.
Contact us for detailed specifications, pricing, and project support.
